ROUTING MATRIX - Routing Matrix

Identifies the routing requirements by ANI Information Digits and service prefix.

NOTE 1: Column A identifies classes of service grouped into packages (indicated by the ANI II digits) by originating line class of service.

ANI II Information Digit Definitions:

All - All classes of service
00 - Regular Business and Residence (POTS Plain Old Telephone Service.)
01 - Multiparty (4/8)
06 - Hotel without room identification
07 - Coinless, Hospital, Inmate, etc.…
20 - AIOD - Listed directory number sent
27 - Coin call
29 - Prison/inmate pay station
52 - OutWATS
61 - Cellular
70 - Non-network controlled payphone
93 - Private Virtual Network (PVN)

NOTE 2: The Service Prefixes identified in Column B of the matrix identify service prefixes that may be used in assigning calls to trunk Denotes a communications path connecting two switching systems in a network, used in the establishment of an end-to-end connection. groups.

Service Prefix Definitions:

All - All of the following service prefixes
1+ - Pre-subscribed 1+ and/or 10XXX/101XXXX + 1+ calls
0+ - Pre-subscribed 0+ and/or 10XXX/101XXXX + 0+ calls
00 - Pre-subscribed 00 and/or 10XXX/101XXXX + 0- calls
011 - Pre-subscribed 011 (IDDD) and/or 10XXX/101XXXX + 011 calls
01 - Pre-subscribed 01+(operator IDDD services) and/or 10XXX/101XXXX + 01+calls
1+700 - Service Access Code (SAC)
0+700 - Service Access Code (SAC)
8YY - Toll Free Service Access Code (SAC)
1+9YY - Calling Party Pays Service Access Code (SAC)
0+9YY - Calling Party Pays Service Access Code (SAC)
1+5YY - Personal Communications Services (PCS) Service Access Code

               (SAC)
0+5YY - Personal Communications Services (PCS)  Service Access Code

               (SAC)

0-L - Local 0- (operator services) calls
411 - Local 411 (directory assistance) calls
LPDA - Local NPA-555-1212 (directory assistance)
0+L - Local IntraLATA A communications service in which the origination and termination are within the same LATA. Traffic

 VALID ENTRIES:

A
B
C
D
X - No requirements

NOTE 1: The entry (A, B, C, D) identifies the REF of the trunk group to which the specified traffic is first routed.

NOTE 2: Use of "X" is based on provider tariffs/practices.

USAGE: This field is conditional.

NOTE 1: Routing Matrix entries are required when routing is being added or changed.  The Routing Matrix entries indicate the new requirements.

NOTE 2: An entry in the 'ALL' column for a specific ANI, e.g. '00' indicates that the referenced trunk group (A, B, C, D) carries the traffic for all Service Prefixes for that ANI.  Entries in the remaining columns in that row are prohibited.

NOTE 3: If the 'ALL' column for a specific ANI is not  populated, a positive entry (A, B, C, D or X) is  required for each Service Prefix in that ANI II row that is being added or changed.

NOTE 4: An entry in the 'ALL' row for a specific Service Prefix, e.g., 1+, indicates that the referenced trunk group carries the traffic for all ANI II digits for that Service Prefix.  Entries in the remainder of that Service Prefix column are prohibited.

NOTE 5: If the 'ALL' row for a specific Service Prefix is not populated, a positive entry (A, B, C, D or X) is required for each ANI II in that Service Prefix column that is being added or changed.

NOTE 6: If there is an entry in the 'ALL' row for a Service Prefix and an entry in the 'ALL' column for an ANI II, the trunk group reference must be the same.

NOTE 7: Otherwise optional.

DATA CHARACTERISTICS: 1 alpha character

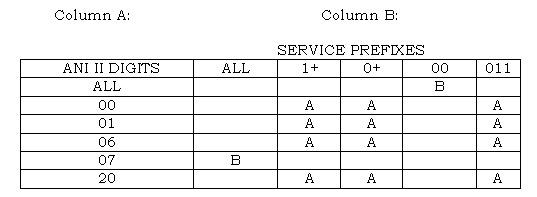

EXAMPLE:

NOTE 1: Use of "B" in the "ALL" Column indicates that  referenced trunk group ("B") carries the traffic for all service prefixes for the ANI II digit 07.

NOTE 2: An entry of "B" in the "ALL" Service Prefix row prohibits entries in the remainder of that service prefix column.  Use of the "ALL" row indicates that referenced trunk group ("B") carries the traffic for all ANI II digits for that service prefix 00.
